Subaru Outback (BR): General Description of Automatic Transmission

A: SPECIFICATION

1. TORQUE CONVERTER CLUTCH

2. OIL PUMP

3. TRANSMISSION CONTROL ELEMENT

4. TRANSMISSION GEAR RATIO

5. PLANETARY GEAR AND PLATE

6. SELECTOR POSITION

7. HYDRAULIC CONTROL AND LUBRICATION

8. COOLING AND HARNESS

9. TRANSFER

10.FINAL REDUCTION GEAR

11.RECOMMENDED GEAR OIL

B: COMPONENT

1. TORQUE CONVERTER CLUTCH & TRANSMISSION ASSEMBLY

1. Torque converter ASSY
2. Circlip
3. Oil pump shaft
4. Differential oil level gauge
5. Transmission hanger COMPL
6. Drain plug
7. Gasket
8. Oil seal
9. Lock plate
10. Side retainer
11. O-ring
12. Oil seal
13. ATF level gauge
14. O-ring
15. Oil charge pipe
16. O-ring
17. Gasket
18. Union screw
19. Ball
20. Spring
21. Union screw
22. ATF outlet pipe
23. ATF inlet pipe
24. Drive plate
25. Reinforcement drive plate
26. Oil pan
27. Gasket
28. ATF drain plug
29. Breather hose
30. Nipple
31. O-ring
32. Oil seal
33. Dust cover
34. Floating bracket
35. Turbine speed sensor 1
36. O-ring
37. Magnet

Tightening torque: N*m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 13 (1.3, 9.6)
T3: 20 (2.0, 14.8)
T4: 25 (2.5, 18.4)
T5: 40 (4.1, 29.5)
T6: 41 (4.2, 30.2)
T7: 45 (4.6, 33.2)
T8: 70 (7.1, 51.6)
T9: 90 (9.2, 66.4)

2. OIL PUMP & FRONT BRAKE

1. O-ring
2. Washer
3. Oil pump housing
4. Oil pump rotor
5. O-ring
6. Air breather hose
7. Oil pump cover
8. O-ring
9. Nipple
10. Needle bearing
11. D-ring (inner)
12. D-ring (outer)
13. Front brake piston
14. Return spring
15. Retainer
16. Snap ring
17. Driven plate
18. Drive plate
19. Retaining plate
20. Snap ring
21. Stator shaft

Tightening torque: N*m (kgf-m, ft-lb)
T1: 10 (1.0, 7.4)
T2: 13 (1.3, 9.6)

3. FRONT PLANETARY CARRIER AND MIDDLE & REAR PLANETARY CARRIER

1. Thrust bearing
2. Front sun gear ASSY
3. Snap ring
4. Front carrier ASSY
5. Race bearing
6. O-ring
7. Seal ring
8. Thrust bearing
9. Input clutch ASSY
10. Rear internal gear ASSY
11. Thrust bearing
12. Middle carrier ASSY
13. Thrust bearing
14. Race bearing
15. Rear carrier ASSY
16. Thrust bearing
17. Middle & rear sun gear ASSY
18. Washer
19. Thrust bearing
20. Seal ring

4. DIRECT CLUTCH AND HIGH & LOW REVERSE CLUTCH

1. Thrust bearing
2. High & low reverse clutch ASSY
3. Direct clutch ASSY

5. REVERSE BRAKE

1. Snap ring
2. Retaining plate
3. Leaf spring
4. Drive plate
5. Driven plate
6. Dish plate
7. Snap ring
8. Retainer
9. Return spring
10. Reverse brake piston
11. D-ring (Outer)
12. D-ring (Inner)
13. AT main case

6. SHORT AT ASSEMBLY

1. Short AT ASSY (non-disassembly)
2. Thrust bearing
3. Seal ring
4. Thrust bearing

7. CONTROL VALVE & TRANSMISSION HARNESS

1. Rear vehicle speed sensor
2. Transmission harness ASSY
3. Front vehicle speed sensor
4. Turbine speed sensor 1
5. Harness bracket
6. Clip
7. Control valve ASSY
8. O-ring
9. O-ring

Tightening torque: N*m (kgf-m, ft-lb)
T: 7 (0.7, 5.2)

8. DIFFERENTIAL GEAR

1. Retainer lock plate
2. Differential side retainer RH
3. O-ring
4. Oil seal
5. Taper roller bearing
6. Hypoid driven gear
7. Drive pinion shaft
8. Pinion shaft
9. Straight pin
10. Differential case RH
11. Differential case LH
12. Differential bevel gear
13. Washer
14. Differential bevel pinion
15. Differential side retainer LH

Tightening torque: N*m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 70 (7.1, 51.6)

9. TRANSFER CASE, EXTENSION CASE & REDUCTION GEAR

1. Seal ring
2. Reduction gear shim
3. Ball bearing
4. Snap ring
5. Planetary pinion washer
6. Needle bearing
7. Spacer
8. Pinion gear
9. Planetary carrier ASSY
10. Planetary pinion shaft ASSY
11. Snap ring
12. Thrust bearing
13. Intermediate shaft
14. Thrust washer
15. Rear drive shaft
16. Ball bearing
17. Transfer clutch hub
18. Transfer clutch plate
19. Driven plate No. 3.
20. Ball bearing
21. Rear drive shaft shim
22. Revolution gear
23. Snap ring
24. Clutch spring retainer
25. Return spring
26. Spring retainer
27. Pressure plate
28. Ball bearing
29. O-ring
30. Transfer clutch piston
31. D-ring
32. Drive pinion shaft
33. Ball bearing
34. Reduction driven gear
35. Snap ring
36. Ball bearing
37. Shim
38. Gasket
39. Extension case
40. Transmission hanger
41. Oil seal
42. Dust cover
43. Taper roller bearing
44. Drive pinion shim
45. Oil seal
46. Drive pinion collar
47. O-ring
48. Lock nut
49. O-ring

Tightening torque: N*m (kgf-m, ft-lb)
T1: 13 (1.3, 9.6)
T2: 25 (2.5, 18.4)
T3: 70 (7.1, 51.6)
T4: 116 (11.8, 85.6)

10.TRANSMISSION CONTROL DEVICE & PARKING SUPPORT

1. Bracket
2. Floating bracket
3. AT main case
4. Range select lever
5. Straight pin
6. Detent spring
7. Manual plate
8. Parking rod
9. Parking support actuator
10. Parking pawl shaft
11. Return spring
12. Parking pawl
13. Ball bearing
14. Snap ring
15. Parking gear
16. Reduction driven gear
17. Ball bearing
18. Gasket

Tightening torque: N*m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: 7 (0.7, 5.2)
T3: 18 (1.8, 13.3)
T4: 25 (2.5, 18.4)
T5: <Ref. to 5AT-76, Parking Pawl.>

11.TRANSMISSION CONTROL MODULE

1. Transmission control module (TCM)
2. Relay

Tightening torque: N*m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)

12.TRANSMISSION MOUNTING

1. Rear cushion rubber
2. Crossmember
3. Stopper
4. Transmission main mounting bracket (RH)
5. Transmission main mounting bracket (LH)

Tightening torque: N*m (kgf-m, ft-lb)
T1: 35 (3.6, 25.8)
T2: 40 (4.1, 29.5)
T3: 45 (4.6, 33.2)
T4: 75 (7.6, 55.3)

C: CAUTION

• Wear appropriate work clothing, including a cap, protective goggles and protective shoes when performing any work.
• Remove contamination including dirt and corrosion before removal, installation or disassembly.
• Keep the disassembled parts in order and protect them from dust and dirt.
• Until the oil pan is removed, do not place with the oil pan side facing up to prevent foreign matter from entering the valve body.
• Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, disassembly and replacement.
• When disassembling the case and other light alloy parts, disassemble them by slightly tapping with a plastic hammer. Do not pry apart with screwdrivers or other tools.
• Vehicle components are extremely hot after driving.

  Be wary of receiving burns from heated parts.

• Use SUBARU genuine gear oil, grease or equivalent.

  Do not mix them of different grades or manufacturers.

• Be sure to tighten bolts and nuts to the specified torque.
• Place shop jacks or rigid racks at the specified points.
• Apply gear oil onto sliding or revolving surfaces before installation.
• Replace deformed or damaged snap rings with new parts.
• Before installing O-rings or oil seals, apply sufficient amount of ATF fluid to avoid damage and deformation.
• Be careful not to incorrectly install or fail to install O-rings, snap rings and other such parts.
• Before securing a part on a vise, place cushioning material such as wood blocks, aluminum plate, or cloth between the part and the vise.
• Avoid damaging the mating surface of the case.
• Before applying liquid gasket, completely remove the old liquid gasket.
• During disassembly or assembly, be sure to use nylon gloves or paper towels. Do not use cloth gloves or waste cloth.

D: PREPARATION TOOL

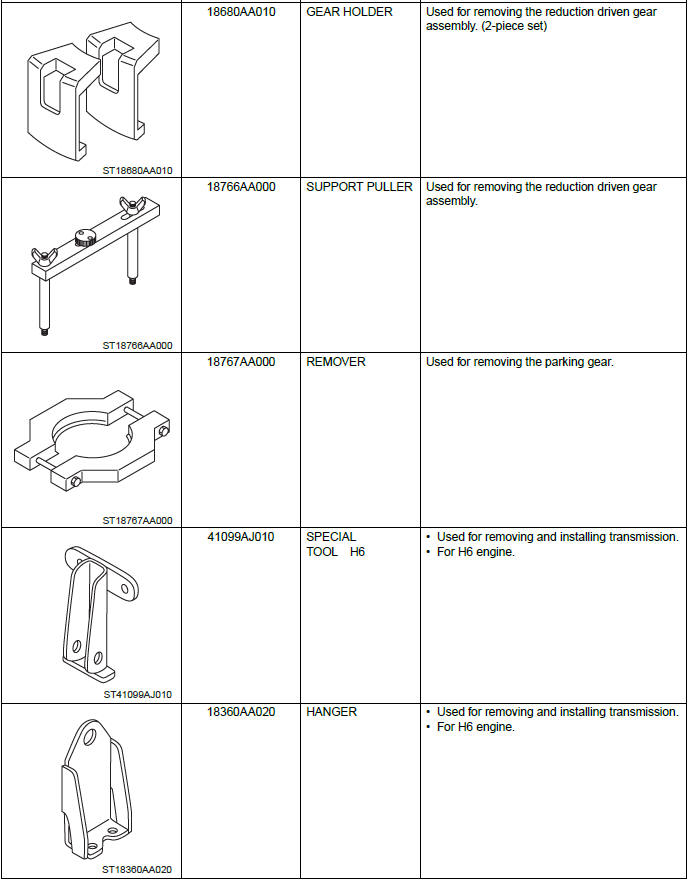

1. SPECIAL TOOL

2. GENERAL TOOL
