Subaru Outback (BR): General Description of Clutch System
A: SPECIFICATION
B: COMPONENT
1. CLUTCH ASSEMBLY
- Dust cover
- Lever spring
- Pivot
- Release lever (non-turbo model)
- Clip (non-turbo model)
- Release bearing (non-turbo model)
- Release lever (turbo model)
- Release bearing (turbo model)
- Clutch cover
- Clutch disc
- Flexible flywheel
Tightening torque: N*m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: 75 (7.6, 55.3)

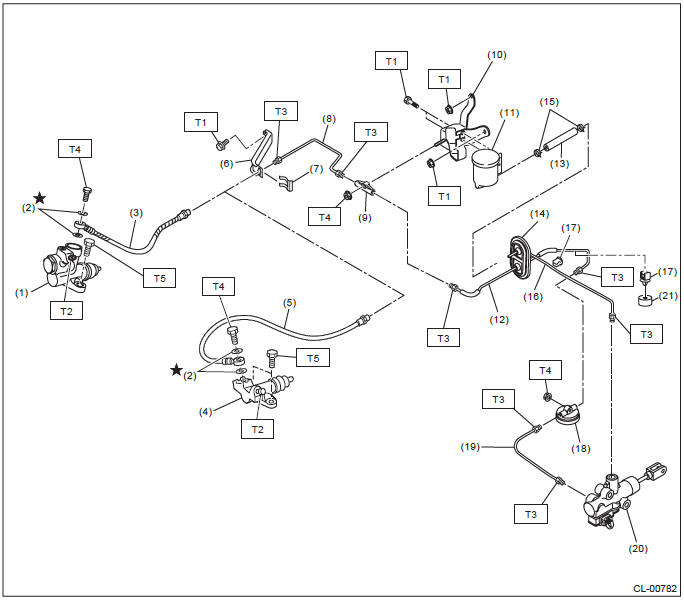

2. CLUTCH PIPE AND HOSE
- Operating cylinder (turbo model)
- Washer
- Clutch hose (turbo model)
- Operating cylinder (non-turbo model)
- Clutch hose (non-turbo model)
- Clutch hose bracket
- Clamp
- Clutch pipe
- Connector
- Reservoir tank bracket
- Reservoir tank
- Clutch pipe
- Reservoir tank hose
- Clutch pipe grommet
- Clamp
- Clutch pipe
- Clamp
- Clutch damper
- Clutch pipe
- Master cylinder ASSY
- Mass damper
Tightening torque: N*m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 7.8 (0.8, 5.8)
T3: 15 (1.5, 11.1)
T4: 18 (1.8, 13.3)
T5: 37 (3.8, 27.3)
3. MASTER CYLINDER
- Master cylinder ASSY
- Clevis pin
- Clip
Tightening torque: N*m (kgf-m, ft-lb)
T: 18 (1.8, 13.3)
4. OPERATING CYLINDER
- Push rod
- Boot
- Piston
- Piston spring
- Operating cylinder
- Breather screw
Tightening torque: N*m (kgf-m, ft-lb)
T: 7.8 (0.8, 5.8)
- Push rod
- Boot
- Piston
- Piston spring
- Operating cylinder
- Breather screw
Tightening torque: N*m (kgf-m, ft-lb)
T: 7.8 (0.8, 5.8)
5. CLUTCH PEDAL ASSEMBLY
- Clutch pedal
- Clutch pedal pad
- Brake pedal
- Brake pedal pad
- Stopper
- Spacer
- Bushing
- Torsion spring
- Assist bushing
- Torsion spring bushing
- Clevis pin
- Snap pin
- Bushing A
- Assist spring (turbo model)
- Clevis pin
- Master cylinder ASSY
- Clip
- Clutch start switch
- Stop & brake switch
- Clutch switch
- Pedal bracket
- Sensor harness
- Band
Tightening torque: N*m (kgf-m, ft-lb)
T1: 8 (0.8, 5.9)
T2: 18 (1.8, 13.3)
T3: 30 (3.1, 22.1)
C: CAUTION
- Wear appropriate work clothing, including a cap, protective goggles and protective shoes when performing any work.
- Remove contamination including dirt and corrosion before removal, installation or disassembly.
- Keep the disassembled parts in order and protect them from dust and dirt.
- Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, installation, disassembly and replacement.
- Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.
- Use SUBARU genuine fluid, grease etc. or equivalent. Do not mix fluid, grease, etc. of different grades or manufacturers.
- Be sure to tighten fasteners including bolts and nuts to the specified torque.
- Place shop jacks or rigid racks at the specified points.
- Apply grease onto sliding or revolving surfaces before installation.
- Before installing O-rings or snap rings, apply sufficient amount of fluid to avoid damage and deformation.
- Before securing a part in a vise, place cushioning material such as wood blocks, aluminum plate or cloth between the part and the vise.
- Keep fluids away from the vehicle body. If any fluid contacts the vehicle body, immediately flush the area with water.
D: PREPARATION TOOL
1. SPECIAL TOOL
2. GENERAL TOOL
