A: LIST

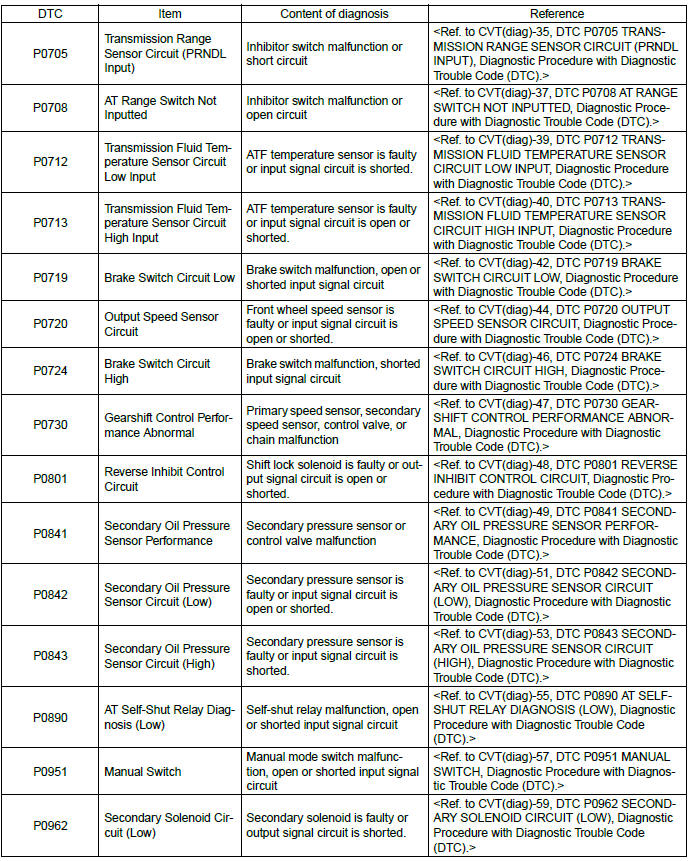

Diagnostic Procedure with Diagnostic Trouble Code (DTC)
A: DTC P0705 TRANSMISSION RANGE SENSOR CIRCUIT (PRNDL INPUT)
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
WIRING DIAGRAM:
B: DTC P0708 AT RANGE SWITCH NOT INPUTTED
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
WIRING DIAGRAM:
C: DTC P0712 TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT LOW INPUT
DTC DETECTING CONDITION:
Input signal circuit of ATF temperature sensor is shorted.
TROUBLE SYMPTOM:
WIRING DIAGRAM:
D: DTC P0713 TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT HIGH INPUT
DTC DETECTING CONDITION:
Input signal circuit of ATF temperature sensor is open or shorted.
TROUBLE SYMPTOM:
WIRING DIAGRAM:
E: DTC P0719 BRAKE SWITCH CIRCUIT LOW
DTC DETECTING CONDITION:
Brake switch malfunction or input signal circuit of brake switch is open or shorted.
TROUBLE SYMPTOM:
WIRING DIAGRAM:

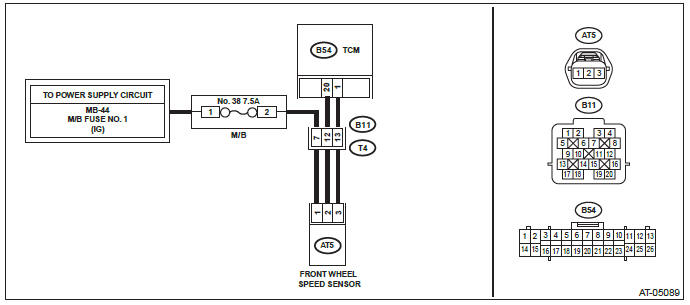

F: DTC P0720 OUTPUT SPEED SENSOR CIRCUIT
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
WIRING DIAGRAM:
G: DTC P0724 BRAKE SWITCH CIRCUIT HIGH
DTC DETECTING CONDITION:
Brake switch malfunction or input signal circuit of brake switch is shorted.
TROUBLE SYMPTOM:
WIRING DIAGRAM:
H: DTC P0730 GEARSHIFT CONTROL PERFORMANCE ABNORMAL
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
I: DTC P0801 REVERSE INHIBIT CONTROL CIRCUIT
NOTE: Refer to "BODY CONTROL SYSTEM" for diagnostic procedure. <Ref. to BC(diag)-31, DTC B1106 SHIFT LOCK CIRCUIT FAILURE, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
J: DTC P0841 SECONDARY OIL PRESSURE SENSOR PERFORMANCE
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
K: DTC P0842 SECONDARY OIL PRESSURE SENSOR CIRCUIT (LOW)
DTC DETECTING CONDITION:
Input signal circuit of secondary pressure sensor is open or shorted.
TROUBLE SYMPTOM:

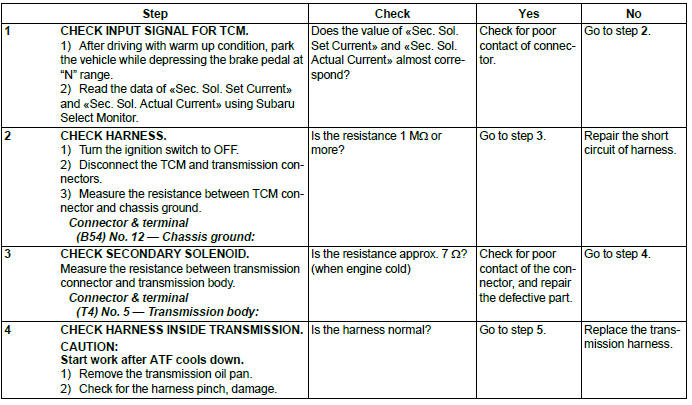

Shift characteristics malfunction
WIRING DIAGRAM:
L: DTC P0843 SECONDARY OIL PRESSURE SENSOR CIRCUIT (HIGH)
DTC DETECTING CONDITION:
Input signal circuit of secondary pressure sensor is shorted.
TROUBLE SYMPTOM:
Shift characteristics malfunction
WIRING DIAGRAM:
M: DTC P0890 AT SELF-SHUT RELAY DIAGNOSIS (LOW)
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
Gear is not changed.
WIRING DIAGRAM:
N: DTC P0951 MANUAL SWITCH
DTC DETECTING CONDITION:
Input signal circuit of manual mode switch is open or shorted.
TROUBLE SYMPTOM:
Manual mode can not be set.
WIRING DIAGRAM:
O: DTC P0962 SECONDARY SOLENOID CIRCUIT (LOW)
DTC DETECTING CONDITION:
Output signal circuit of secondary solenoid is shorted.
TROUBLE SYMPTOM:
WIRING DIAGRAM:
P: DTC P0963 SECONDARY SOLENOID CIRCUIT (HIGH)
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
WIRING DIAGRAM:
Q: DTC P0965 FORWARD & REVERSE SOLENOID FUNCTION
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
R: DTC P0966 FORWARD & REVERSE SOLENOID CIRCUIT (LOW)
DTC DETECTING CONDITION:
Output signal circuit of F&R solenoid is shorted.
TROUBLE SYMPTOM:
Excessive shift shock
WIRING DIAGRAM:
S: DTC P0967 FORWARD & REVERSE LINEAR SOLENOID CIRCUIT (HIGH)
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
Engine speed increases abruptly, and can not start.
WIRING DIAGRAM:
T: DTC P0970 TRANSFER SOLENOID CIRCUIT (LOW)
DTC DETECTING CONDITION:
Output signal circuit of AWD solenoid is shorted.
TROUBLE SYMPTOM:
Drivability getting worse.
WIRING DIAGRAM:
U: DTC P0971 TRANSFER SOLENOID CIRCUIT (HIGH)
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
WIRING DIAGRAM:
V: DTC P0973 PRIMARY SOLENOID SYSTEM A CIRCUIT (LOW)
DTC DETECTING CONDITION:
Output signal circuit of primary UP solenoid is shorted.
TROUBLE SYMPTOM:
Gear is not changed. (No up-shift)
WIRING DIAGRAM:
W: DTC P0974 PRIMARY SOLENOID SYSTEM A CIRCUIT (HIGH)
DTC DETECTING CONDITION:
Output signal circuit of primary UP solenoid is open or shorted.
TROUBLE SYMPTOM:
Gear is not changed. (No up-shift)
WIRING DIAGRAM:
X: DTC P0976 PRIMARY SOLENOID SYSTEM B CIRCUIT (LOW)
DTC DETECTING CONDITION:
Output signal circuit of primary DOWN solenoid is shorted.
TROUBLE SYMPTOM:
Gear is not changed. (No down-shift)
WIRING DIAGRAM:
Y: DTC P0977 PRIMARY SOLENOID SYSTEM B CIRCUIT (HIGH)
DTC DETECTING CONDITION:
Output signal circuit of primary DOWN solenoid is open or shorted.
TROUBLE SYMPTOM:
Gear is not changed. (No down-shift)
WIRING DIAGRAM:
Z: DTC P1718 AT CAN COMMUNICATION CIRCUIT
NOTE: Refer to "LAN SYSTEM" for diagnostic procedure. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
AA:DTC P1724 AT EEPROM ERROR
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
AB:DTC P1725 AT BODY SYSTEM CAN COMMUNICATION TROUBLE
NOTE: Refer to "LAN SYSTEM" for diagnostic procedure. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
AC:DTC P2746 PRIMARY PULLEY REVOLUTION SPEED SENSOR CIRCUIT
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
WIRING DIAGRAM:
AD:DTC P2750 SEC. PULLEY REVOLUTION SPEED SENSOR CIRCUIT
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
WIRING DIAGRAM:
AE:DTC P2762 LOCK-UP DUTY SOLENOID MALFUNCTION
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
AF:DTC P2763 LOCK-UP DUTY SOLENOID CIRCUIT (HIGH)
DTC DETECTING CONDITION:
Output signal circuit of lock-up duty solenoid is open or shorted.
TROUBLE SYMPTOM:
No lock-up occurs.
WIRING DIAGRAM:
AG:DTC P2764 LOCK-UP DUTY SOLENOID CIRCUIT (LOW)
DTC DETECTING CONDITION:
Output signal circuit of lock up duty solenoid is shorted.
TROUBLE SYMPTOM:
No lock-up occurs.
WIRING DIAGRAM:
AH:DTC P2769 LOCK-UP ON/OFF SOLENOID CIRCUIT (LOW)
DTC DETECTING CONDITION:
Output signal circuit of lock up ON/OFF solenoid is shorted.
TROUBLE SYMPTOM:
No lock-up occurs.
WIRING DIAGRAM:
AI: DTC P2770 LOCK-UP ON/OFF SOLENOID CIRCUIT (HIGH)
DTC DETECTING CONDITION:
Output signal circuit of lock up ON/OFF solenoid is open or shorted.
TROUBLE SYMPTOM:
No lock-up occurs.
WIRING DIAGRAM:
Diagnostic Procedure without Diagnostic Trouble Code (DTC)
A: CHECK SHIFT INDICATOR
DIAGNOSIS:
TROUBLE SYMPTOM:
WIRING DIAGRAM:
Diagnostics with Phenomenon
A: INSPECTION
