Subaru Outback (BR): Vehicle identification

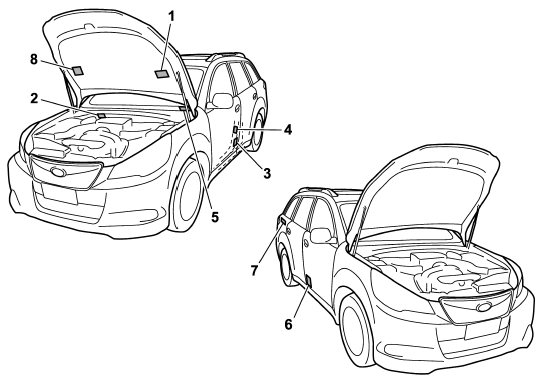

1) Emission control label


1) Emission control label 2) Vehicle identification number 3) Certification and bar code label 4) Tire inflation pressure label 5) Vehicle identification number plate 6) Model number label
7) Fuel label
8) Air conditioner label
